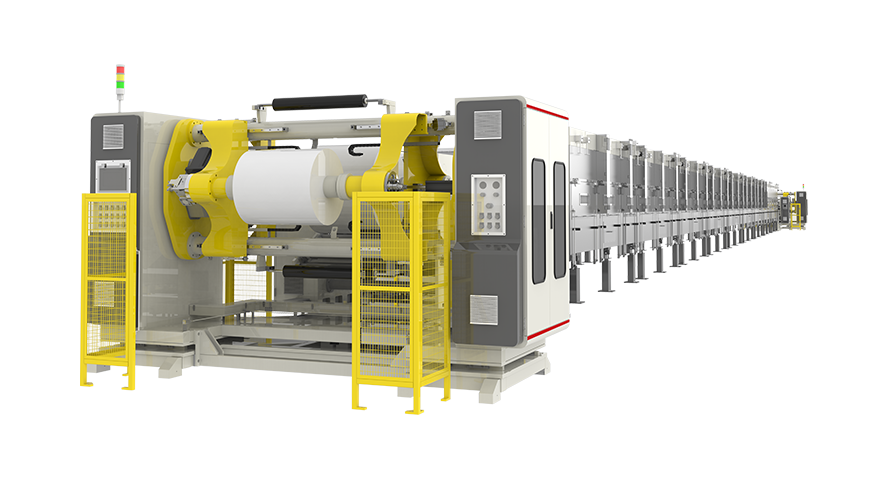

single-laye coating machine
coating width :
max.1350mm
coating speed :
max.120m/min
the equipment is suitable for coating both power batteries and digital batteries. it is based on advanced technologies, including dual closed-loop control of speed and torque, flow field analysis, large-diameter unwinding tension and nip force closed-loop control, high-efficiency and energy-saving heat exchangers, high-speed gap coating, and roller-to-roller control, achieving world-leading performance.
with excellent performance indicators such as single-side surface density precision of ±1.2%, double-side surface density precision of ±1.0%, cov ≤ 0.3%, and cpk > 1.67, it enables a high-precision, highly controllable, and stable coating process.
equipment parameters
| item | 750series | 850series | 1000series | 1400series | 1600series |
|---|---|---|---|---|---|
roller width（mm） | 750 | 850 | 1000 | 1400 | 1600 |
| coating width（mm） | max.680 | max.700 | max.800 | max.120 | max.1350 |
| coating speed（m/min） | max.120 | ||||
| unwinding roll diameter（mm） | max.800 | ||||
rewinding roll diameter（mm） | max.1200 | ||||
related products
-
double-layer coating machine
the equipment ensures stable and continuous output in the coating process, providing customers with an efficient and stable solution for production.
-
double-layer super-e coating machine
combined with the a/b side coating design, the outstanding integration and innovative design enable efficient, high-quality, and stable production. this reduces labor, factory space, and overall production costs, while effectively promoting energy-saving and emission-reduction in equipment.
-
super s-type coater
the super-s series coating machine is a derivative and variant of the super-e prototype, integrating core standardized units such as the super-e a-side coating machine, unwinding&
rewinding units, oven, and traction unit, inheriting the super-e’s exceptional thermal efficiency and energy-saving performance.
-
calendering and slitting integrated machine
the machine is capable of automatic rewinding and unwinding, employing high-speed online roller cleaning technology. the production speed can reach up to 120m/min, with a maximum roller width of 1500mm.
