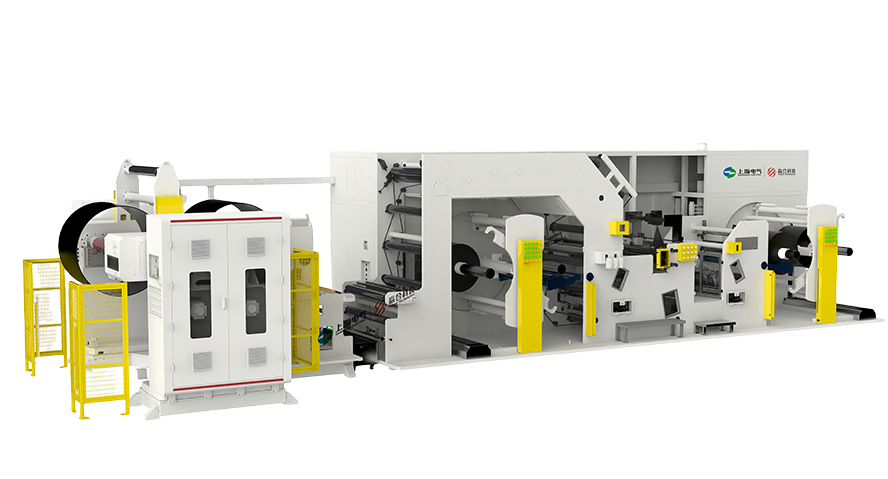

slitting machine
slitting width accuracy:
±0.3mm
machine speed(standard slitting):
max.50m/min
equipment parameters
| item/series | cantilever slitting /350-550series | standard slitting /600-1600series |
|---|---|---|
roller width（mm） | 350-55 | 600-1600 |
| electrode width（mm） | max.300-500 | max.500-1500 |
| slitting width accuracy （mm） | ±0.3 | ±0.3 |
| machine speed（m/min） | max.120 | max.150 |
| production speed（m/min） | max.100 | max.120 |
slitting burr | ＜5um | ＜5um |
correction accuracy （mm) | ±0.1 | ±0.1 |
rewinding alignment （mm） | ±0.5 | ±0.5 |
correction accuracy （mm) | ±0.1 | ±0.1 |
related products
-
double-layer coating machine
the equipment ensures stable and continuous output in the coating process, providing customers with an efficient and stable solution for production.
-
single-layer coating machine
the equipment is suitable for coating both power batteries and digital batteries.
-
double-layer super-e coating machine
combined with the a/b side coating design, the outstanding integration and innovative design enable efficient, high-quality, and stable production. this reduces labor, factory space, and overall production costs, while effectively promoting energy-saving and emission-reduction in equipment.
-
super s-type coater
the super-s series coating machine is a derivative and variant of the super-e prototype, integrating core standardized units such as the super-e a-side coating machine, unwinding&
rewinding units, oven, and traction unit, inheriting the super-e’s exceptional thermal efficiency and energy-saving performance.
-
calendering and slitting integrated machine
the machine is capable of automatic rewinding and unwinding, employing high-speed online roller cleaning technology. the production speed can reach up to 120m/min, with a maximum roller width of 1500mm.
