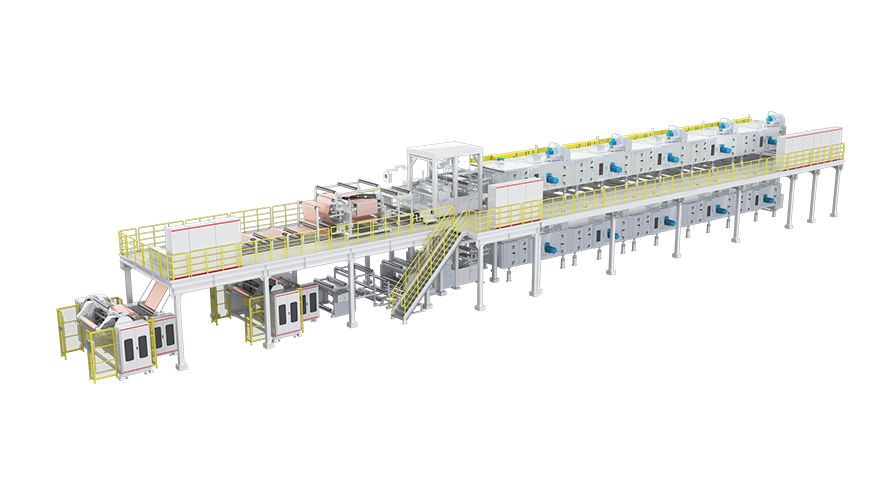

double-layer super-e coating machine
roller surface width:
max.1800mm
coating speed:
max.120m/min
the new e-shaped electrode layout allows the electrode to undergo two drying processes within a single oven. compared to traditional coating machines, this reduces the length by over 35%, doubles the oven efficiency, reduces the equipment footprint by 35%, and saves over 35% in energy consumption. it also decreases the battery coating machine footprint, as well as the lithium battery manufacturing equipment floor space by 8%. additionally, maintenance personnel requirements are reduced by 30%.
combined with the a/b side coating design, the outstanding integration and innovative design enable efficient, high-quality, and stable production. this reduces labor, factory space, and overall production costs, while effectively promoting energy-saving and emission-reduction in lithium ion battery assembly equipment. these features are a testament to the high-performance capabilities of our battery coating machine manufacturer, offering a reliable source of battery coating machine wholesale solutions.
equipment parameters
| item | 850series | 1000series | 1400series | 1600series | 1800series |
|---|---|---|---|---|---|
roller width（mm） | 850 | 1000 | 1400 | 1600 | 1800 |
| coating width（mm） | max.700 | max.800 | max.120 | max.1350 | mzx.1550 |
| coating speed（m/min） | max.120 | ||||
| unwinding roll diameter（mm） | max.800 | ||||
rewinding roll diameter（mm） | max.1200 | ||||
related products
-
single-layer coating machine
the equipment is suitable for coating both power batteries and digital batteries.
-
calendering and slitting integrated machine
the machine is capable of automatic rewinding and unwinding, employing high-speed online roller cleaning technology. the production speed can reach up to 120m/min, with a maximum roller width of 1500mm.
