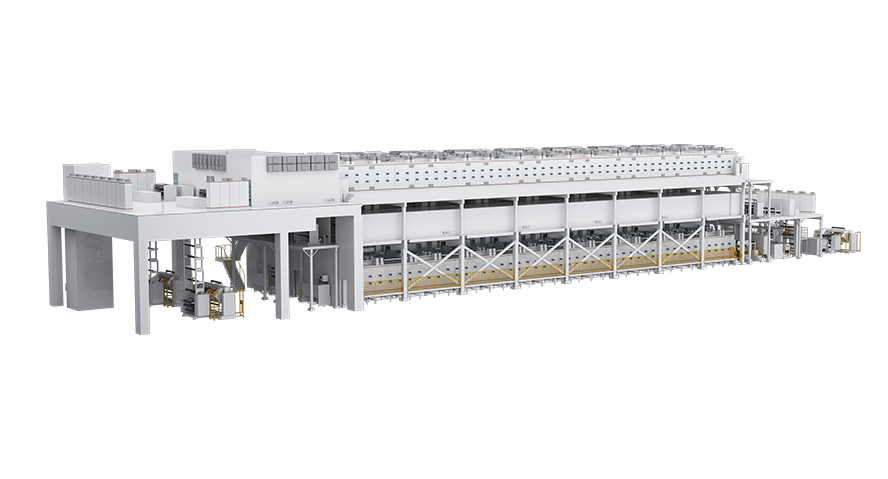

super s-type coater
roller surface width:
max.1800mm
coating speed:
max.120m/min
the super-s series coating machine is a derivative and variant of the super-e prototype, integrating core standardized units such as the super-e a-side coating machine, unwinding&rewinding units, oven, and traction unit, inheriting the super-e’s exceptional thermal efficiency and energy-saving performance. it also adopts a newly designed integrated fold-back oven, enabling fold-back coating without blowing, simplifying equipment layout, reducing initial purchase costs, and further enhancing operational stability and overall cost-effectiveness.
as a flexible coating solution, the super-s series coating machine can be deeply tailored to match different customers’production space constraints, specific process routes, risk control preferences, and long-term operating cost requirements, offering targeted customized solutions through a series of products.
equipment parameters
| item | 850series | 1000series | 1400series | 1600series | 1800series |
|---|---|---|---|---|---|
roller width（mm） | 850 | 1000 | 1400 | 1600 | 1800 |
| coating width（mm） | max.700 | max.800 | max.1200 | max.1350 | mzx.1550 |
| coating speed（m/min） | max.120 | ||||
| unwinding roll diameter（mm） | max.800 | ||||
rewinding roll diameter（mm） | max.1200 | ||||
related products
-
single-layer coating machine
the equipment is suitable for coating both power batteries and digital batteries.
-
calendering and slitting integrated machine
the machine is capable of automatic rewinding and unwinding, employing high-speed online roller cleaning technology. the production speed can reach up to 120m/min, with a maximum roller width of 1500mm.
-
double-layer super-e coating machine
combined with the a/b side coating design, the outstanding integration and innovative design enable efficient, high-quality, and stable production. this reduces labor, factory space, and overall production costs, while effectively promoting energy-saving and emission-reduction in equipment.
