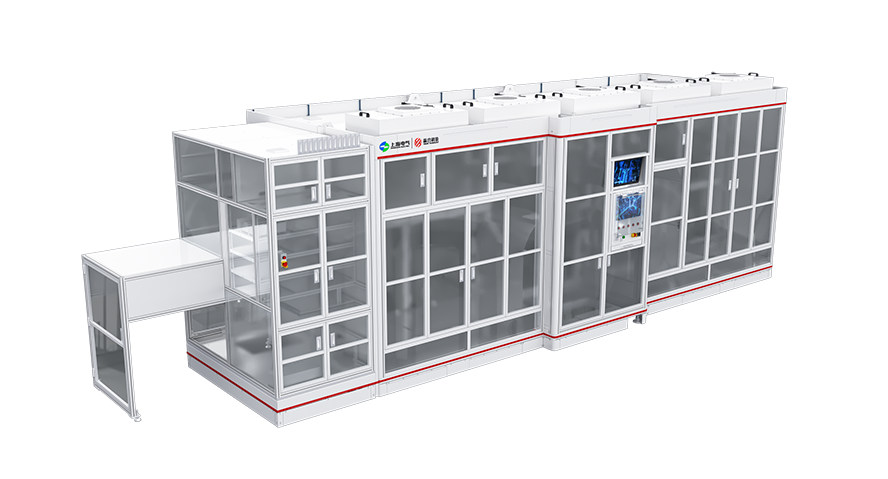

prismatic power battery winding machine
efficiency：
6ppm(length of electrode: 16m)
qualification rate:
≥99.5%
the equipment is mainly used for the fully automated winding of prismatic battery cells, featuring online overhang detection and closed-loop control. after cold pressing, pre-shaping, and hi-pot testing, the material is unloaded via a conveyor belt, ensuring efficient operation in battery winding machine processes.
equipment parameters

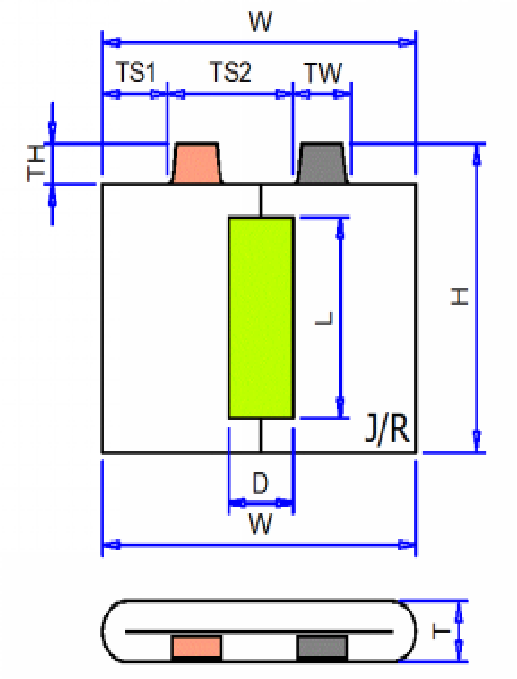

equipment model | ywpb300 | ywpb450k | cell diagram |
|---|---|---|---|
compatibility range | h:80-270 w:100-300 t:10-40 th:≤35 | h:200-420 w:100-230 t:10-40 th:≤35 |  |
line speed fluctuation | ＜±1 | ＜±1 | |
tension fluctuation | ＜±3% | ＜±3% | |
winding alignment(mm) | ＜±0.3 | ＜±0.3 | |
efficiency | 6ppm (length of electrode: 16m) | 6ppm (length of electrode: 16m) | |
| qualification rate | ≥99.5% | ≥99.5% |
